FHE Hardware

Hardware acceleration

One major aspect of FHE research is the work on designing custom hardware to accelerate FHE operations. There are many projects, but let me summarize a few I am more familiar with.

The most prominent group of projects are part of a DARPA program called DPRIVE. In short, DARPA is funding FHE hardware designers with a challenge to perform logistic regression, CNN inference, and CNN training as quickly as possible in FHE. There are currently four participants:

• Intel, whose accelerator is called HERACLES.


• Duality, whose accelerator is called TREBUCHET.


• SRI International, whose accelerator is called CraterLake.


• Niobium Microsystems, whose accelerator is called BASALISC.


All DPRIVE participants are working on ASICs that accelerate arithmetic FHE schemes (BFV/BGV and CKKS), and they are at various points along the path toward fabrication. Their initial performance claims are based on simulation, but to trumpet the horn of the underdog, Niobium, their initial paper claims a 5,000x speedup over CPU, with logistic regression of a 1,024-sample, 10-feature dataset is estimated to take 40 seconds versus 60 hours on CPU. To me this is a lower bound on what’s possible with hardware acceleration. At the core of most of these accelerators are accelerations of number-theoretic transforms (NTTs) and other polynomial operations in the relevant polynomial rings. To my understanding, the hard parts of these accelerators are packing enough RAM into them so that they can store all of the ciphertexts and auxiliary key material and get good memory locality.

Another project I’m familiar with is an FPGA-based approach to accelerating CGGI, which goes by the name FPT, out of the COSIC research lab at KU Leuven. They use an Alveo U280, and they functionally bootstrap pipelined batches of 16 ciphertexts at a time to achieve a throughput of 1 bootstrap / 35 microseconds. I’ve seen their live demo, in which they run Conway’s Game of Life in CGGI, and the animation is effectively in real time. Unlike the NTT-crunching machines from the DPRIVE program, FPT is an FFT-crunching machine. Naturally, this project starts from the TFHE-rs API for CGGI.

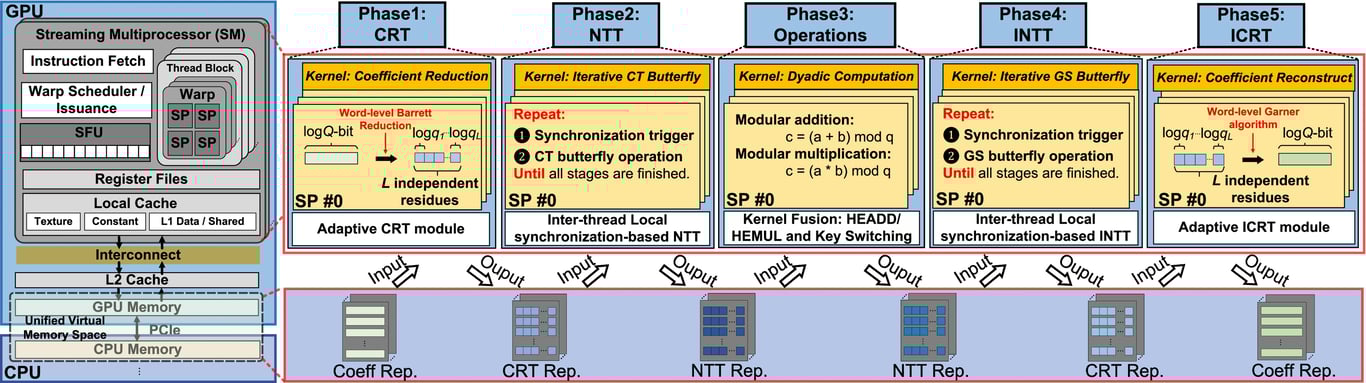

Then there are approaches I’m less familiar with. The folks at Intel have a HEXL project that focuses on targeting Intel CPUs using AVX and similar modern CPU fanciness. There are also folks at NVIDIA working on GPU acceleration, and the HEaaN library (CKKS) also supports GPU acceleration. There is also a company called Optalysys that is building an optical computing chip for FHE. The idea there is that, by using interference patterns of light passing through lenses (or rather, nanoscale equivalents), one can compute Fourier transforms “at the speed of light,” and in doing so accelerate bootstrapping.

And finally, I’m working on my own hardware acceleration approach: CGGI on TPUs. This is in an open source library called jaxite (named so because it’s written in JAX). The performance is nothing to write home about yet, but my hope is that if I can get performance to be 10-100x faster than CPU, then I can use the fact that Google already has TPUs deployed at scale to ship some FHE products before more intense hardware acceleration is ready at scale.

For some more details on these and other accelerators I know less about, see this paper, “SoK: Fully Homomorphic Encryption Accelerators”.
